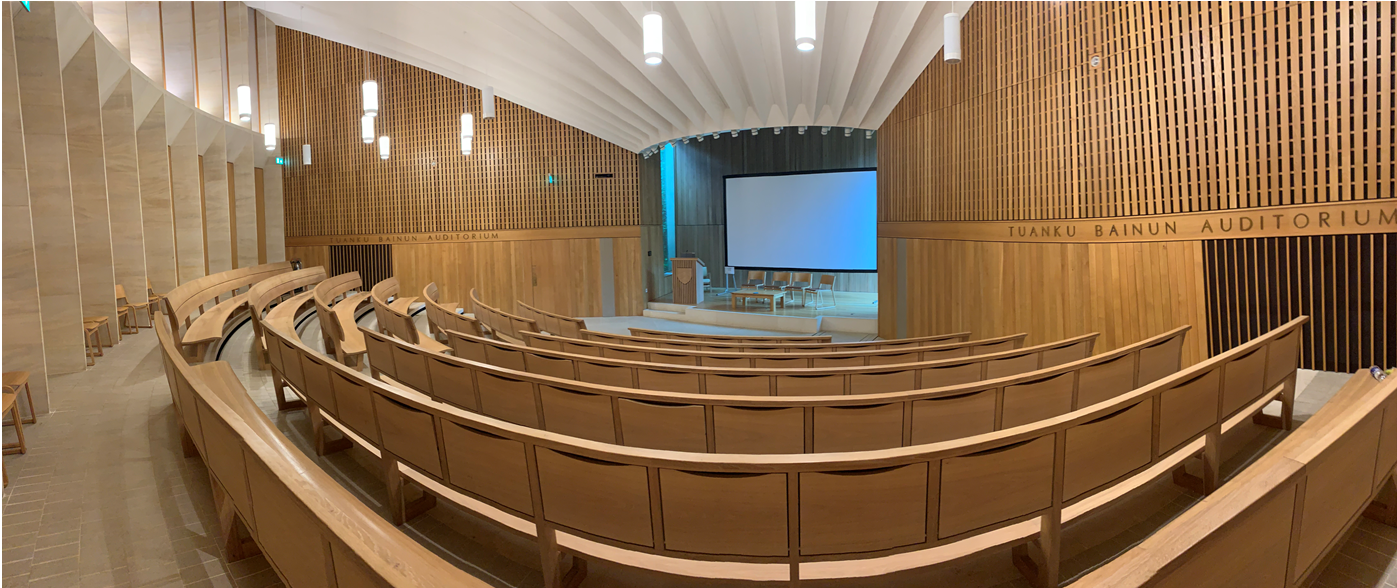

Tuanku Bainun Auditorium

The Tuanku Bainun Auditorium is located within the SNSC at Worcester College.


The auditorium is in the centre of the SNSC. It has space for 160 seated guests.

It has the following audio/visual equipment:

• Projector screen. To display presentations and video.

• Touchscreens to interface with Audio Visual controls. Situated on the left and right of the stage.
• Lectern:
  • laptop for running PowerPoint presentations and Internet media.
    HDMI and power provision for user's devices
    Mic built into the lectern
• Handheld and lapel wireless Mics
• Event video recording (Panopto)

Here are the notes to acquaint yourself with the operation of the above.

Touchscreen operation
You will see there are two touchscreens. One on the left and one on the right of the stage.
The lectern can be moved to either side of the stage. Please be aware that the lift for chair users is
on the right hand side.

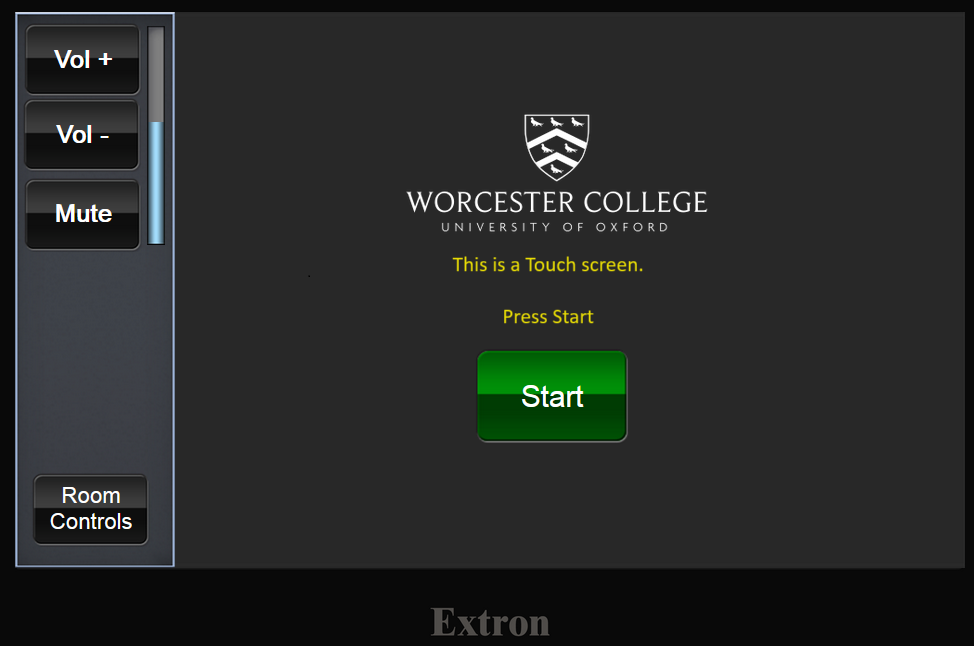

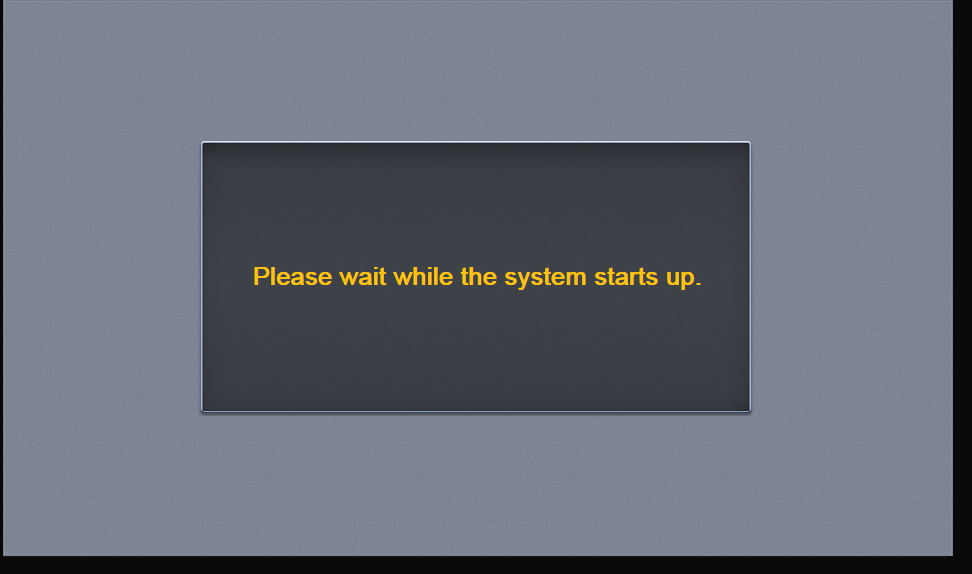

Please wait whilst the system starts.

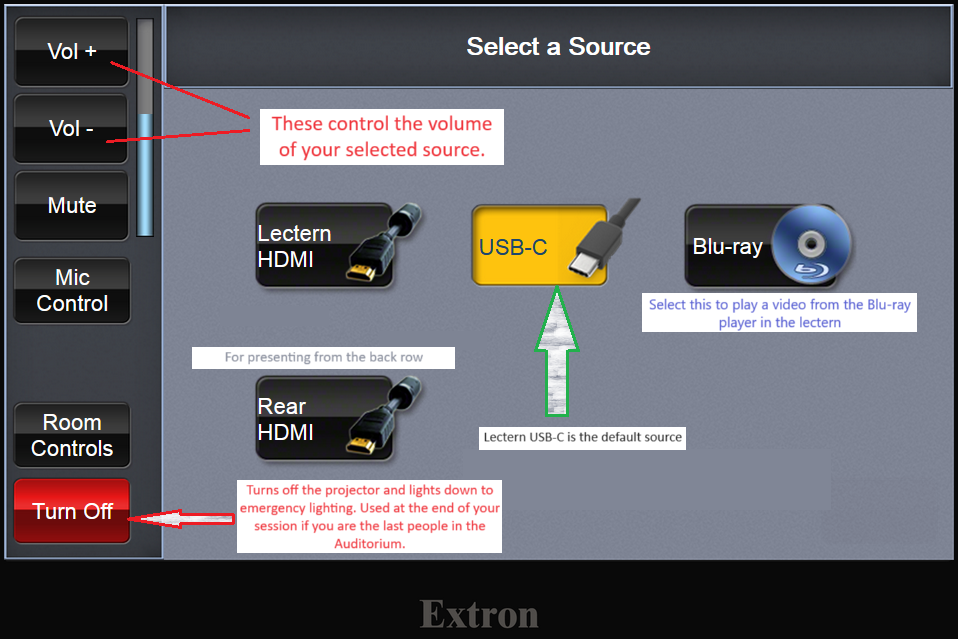

Now you can select the type of device you are planning to use. Just touch the appropriate icon.
The default is USB-C and will be automatically selected at Startup:
Insert the USB-C cable into the lectern laptop or choose one of the other options for your own device.

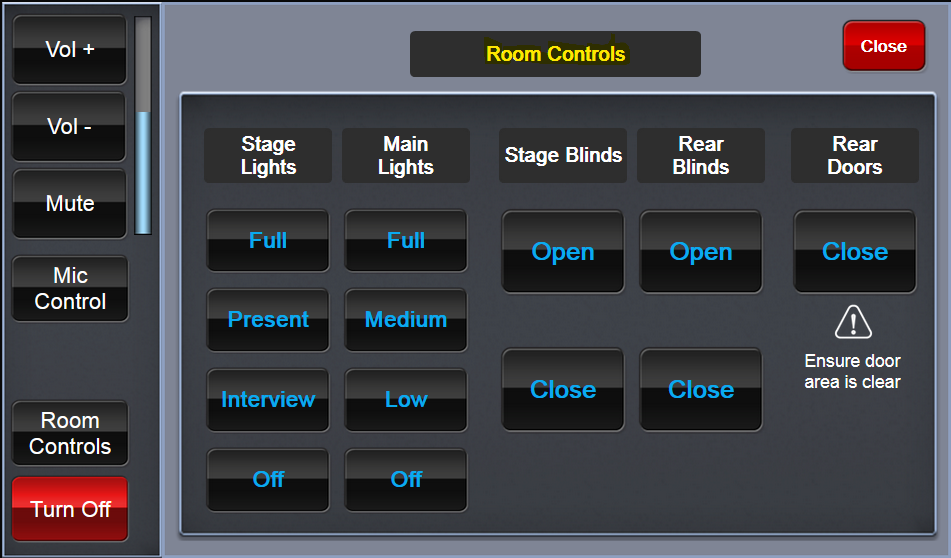

In order to create the correct lighting their are choices for the Stage lights (above the stage) and the Main lights, in the auditorium.
A simple push  will change the lights as indicated on the button.
The light in the Auditorium can also altered by opening or closing the Rear Blinds which sit above the back wall of the auditorium.
The blinds are either open or closed and their movement cannot be stopped once started. If you change your mind about opening/closing them
you have to allow them to complete your requested operation, and then choose again.
There are also Stage blinds left and right at the rear of the stage which can be opened or closed as desired.

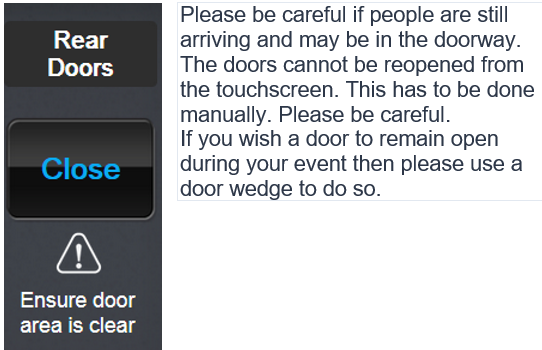

Finally, you are able to close the auditorium doors at the back using this



Pressing the Stage Lights Off button leaves the auditorium with just Main lights.


Pressing the Main Lights Off button leaves the auditorium with just Stage and emergency Main lights.
Pressing

Shuts down the projector. The auditorium will have emergency lighting only.



The close control


The next step is to manage your microphones unless you are only using the lectern mic.

The Mic control

As below:

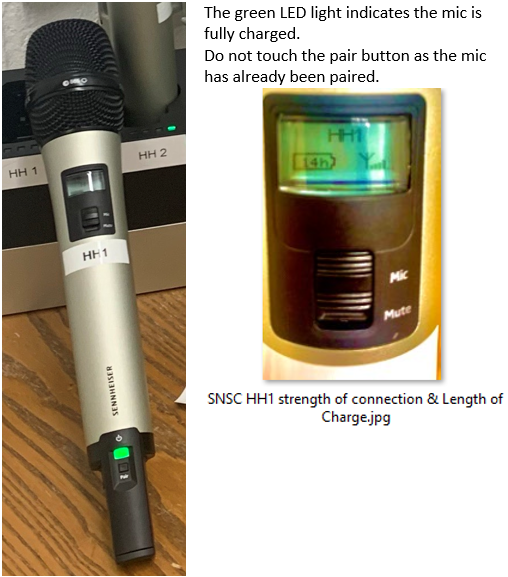

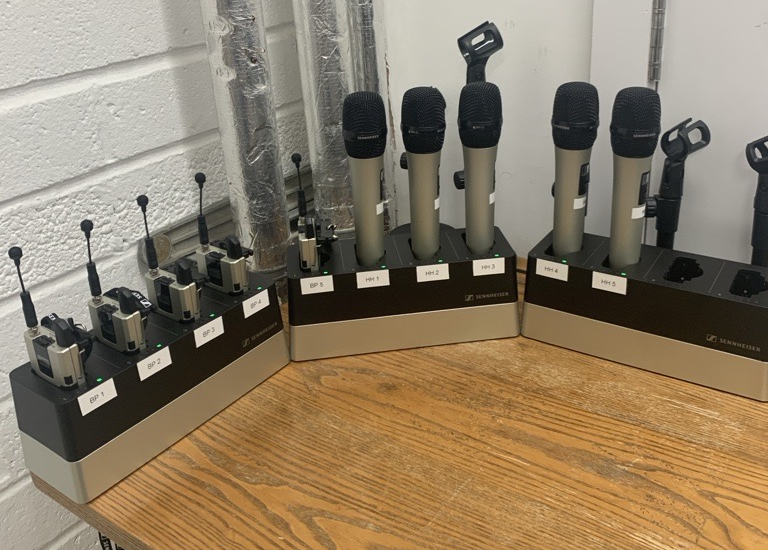

You collect mics from their charging stations. To do so. Exit the auditorium using the door out of the auditorium on
the left hand side. Use the door opposite, where you will find the mics. You will need to obtain a fob from the Porter's Lodge to gain access.

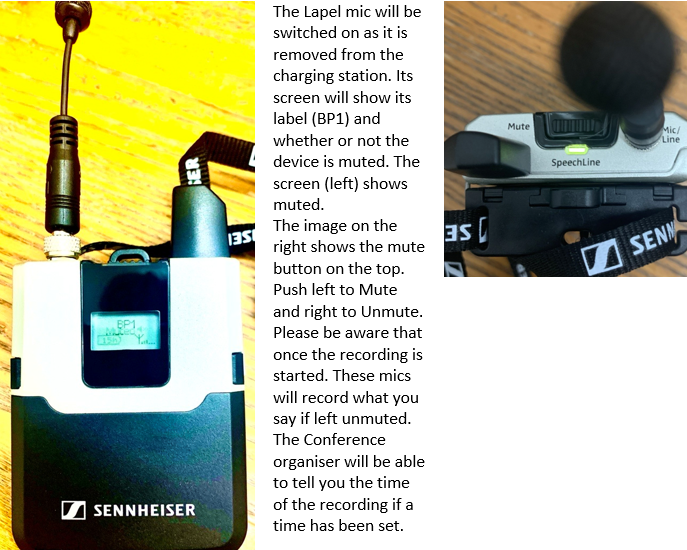

Lapel Mics

After use. Please return the mic(s) so they recharge for the next users. Thank you.

The handheld and lapel mics have a mute button. Best practice is to keep your mic muted
until you are ready to begin. Especially, if the event is being recorded. The lapel mic should be placed
in a convenient position as it hangs from its strap about 30cm (the length of a ruler) below your head.

Once you are happy with the positioning you can set the volume.

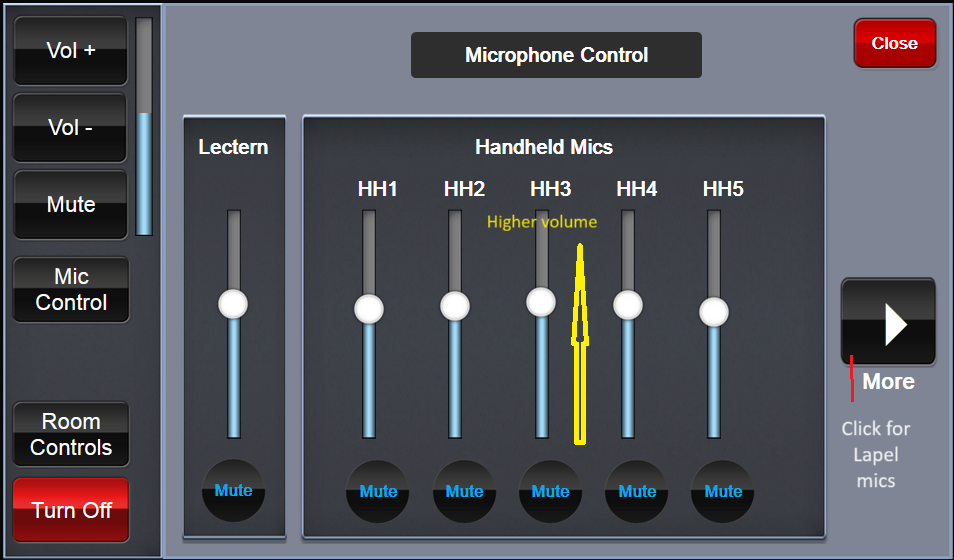

Back at the Touchscreen with your mic(s), choose Mic Control. You will see this:

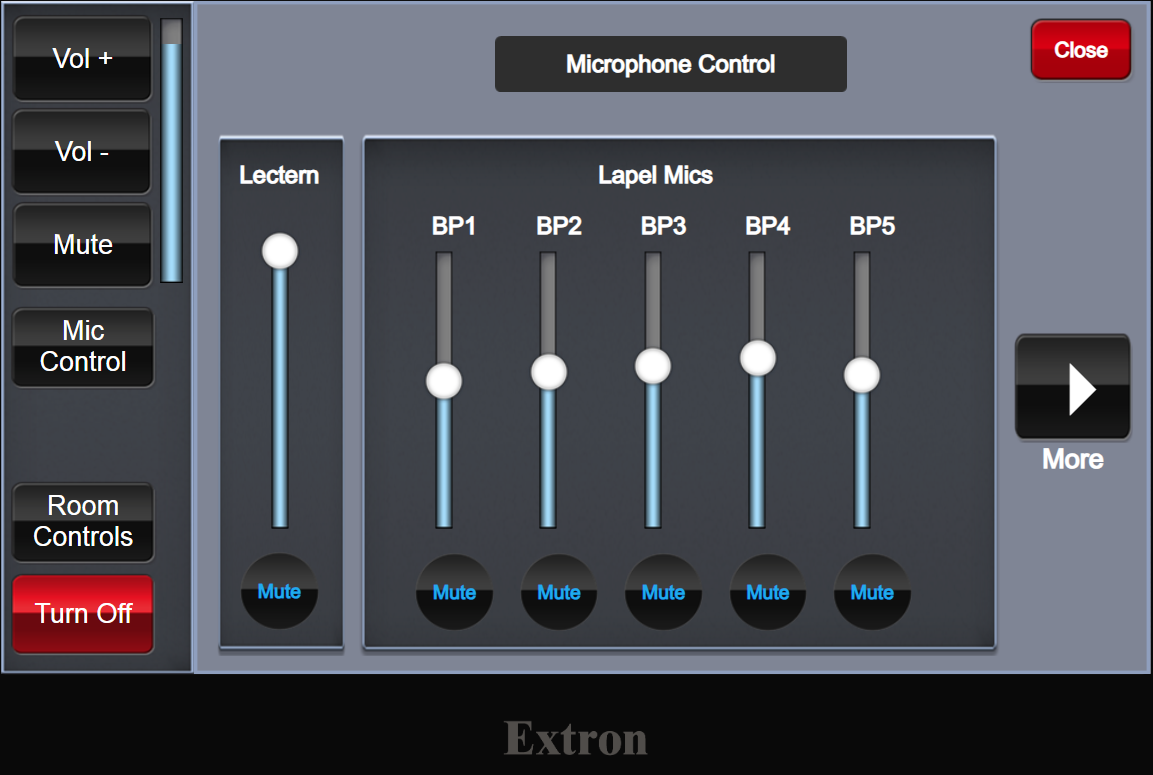

Here you are able to alter the volume of the various mics as you wish. After adjusting the handheld mics click the More button
to repeat the exercise with your lapel mics if you are using them:

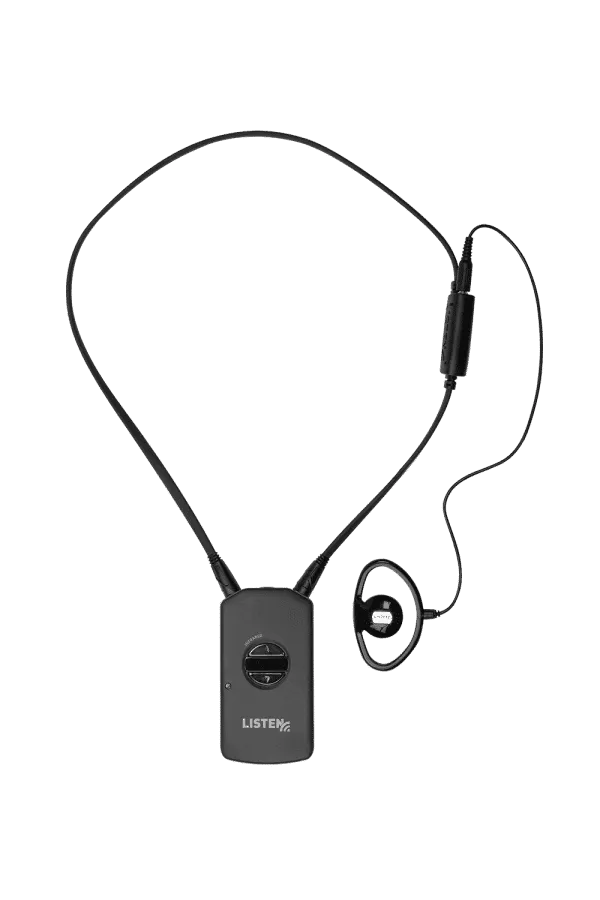

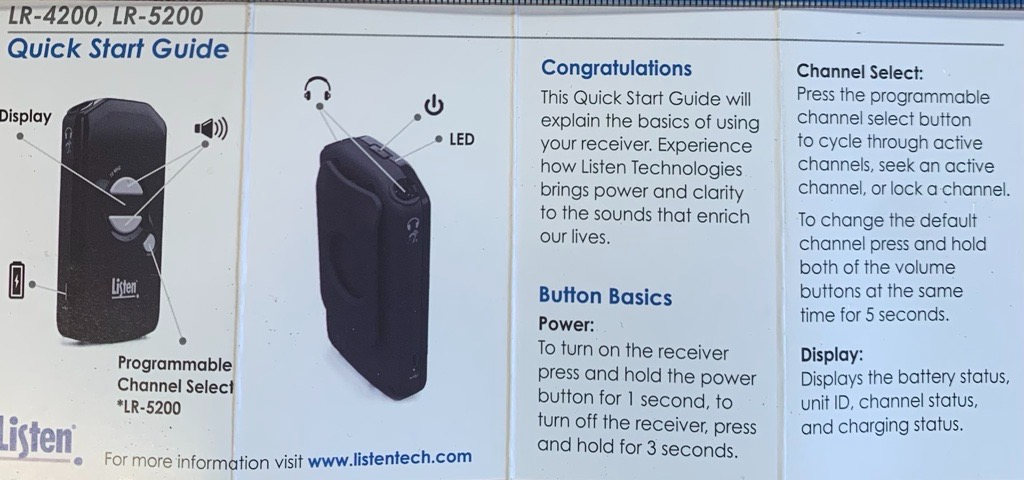

Hearing aid Induction Loop system

https://www.listentech.com/shop/product/intelligent-dsp-ir-receiver-package-1/

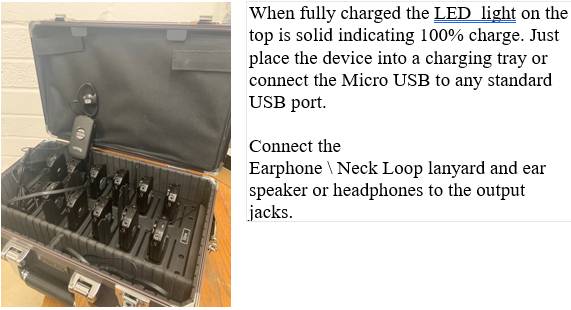

These are stored in the store room in the SNSC where the microphones are.
For each person that requires to use this equipment.

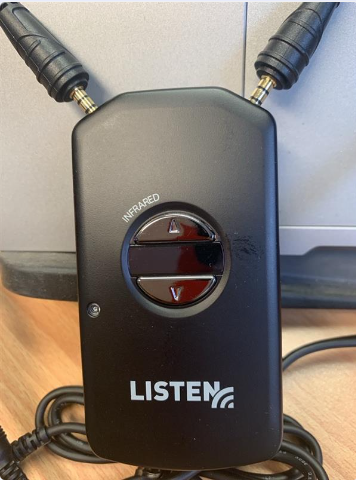

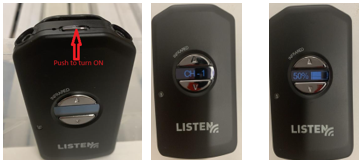

Switch on. The central display then shows the channel number and then the battery charge %.
Connect both plugs from the neck loop into the volume control box.
Place the earphone around the ear. It the person using it has a hearing aid with a 'T' function. Then that should be selected.

This system is not kept on charge as it is used infrequently.
To ensure the units are as charged as required please plug in the whole box a day before the units are required.
The power supply is kept in the lid of the large box.

Lectern

Lectern Laptop

The laptop will either be on the top of the lectern, in the drawer (underneath the top), or on the small stage table or windowsill.

Please find the Guestpresenter login sheet. It is changed weekly and the dates on the sheet will be current.
Login with worc\guestpresenter and the password from the sheet.

Blu-Ray \ DVD Player

Power on the device and place your Blu-Ray disc in the player. On the Touchscreen select Blu-ray icon
If the touch screen is not showing it please select
Adjust the volume / Disc options etc
